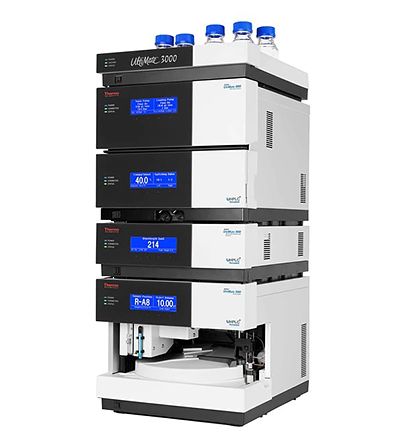

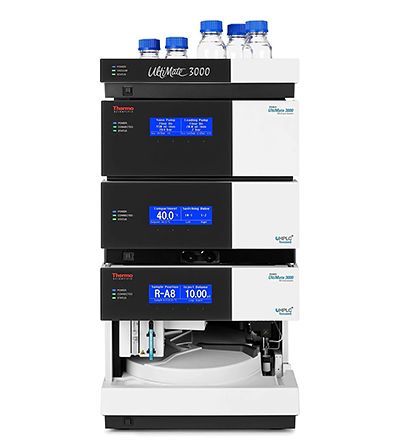

The Thermo Scientific UltiMate 3000 RSLCnano system offers precision, productivity and performance for all your low-flow UHPLC needs
Get outstanding performance and workflow versatility using the Thermo Scientific UltiMate 3000 RSLCnano system. This low-flow liquid chromatography system has a wide flow-pressure footprint with nano-, capillary-, and micro-flow options. Select the nano-flow solution for high sensitivity applications, or choose the robust capillary- and micro-flow solution to balance sensitivity and high throughput performance. Advanced Thermo Scientific ProFlow technology improves nano-flow rate control and results in high retention time precision and gradient reproducibility.
System specifications:
Category
|
UltiMate 3000 RSLCnano System
|
Maximum available column pressure |
With nano ProFlow flow meter: 900 bar With capillary flow meter: 800 bar With micro flow meter: 800 bar |
Flow range, recommended |
Nano-flow configuration: 50 nL/min - 1.5 µL/min Capillary-flow configuration: 0.5 - 10 µL/min Micro-flow configuration: 5 - 50 µL/min |
Pump options (default gradient delay volume) |
Binary (<25 nL) and ternary loading pump (220 µL)
|
Biocompatible |
Yes
|
System design |
Modular
|
Active flow control |
Yes
|
Injection volume range |
Standard: 20 nL - 20 µL Optional: 20 nL - 125 µL |
Sample cooling |
Yes
|
Sample capacity (standard) Based on standard 12 mm OD vials (≤1.5 mL) for comparison |
3 racks that hold 40 vials each or 3 well plates
|
Column compartment thermostatting |
Yes Forced air |
Column compartment pre-heater |
Not available
|
Column compartment post-column cooler |
Not available
|
Compatible detectors |
Mass Spectrometer Variable Wavelength Detector |
