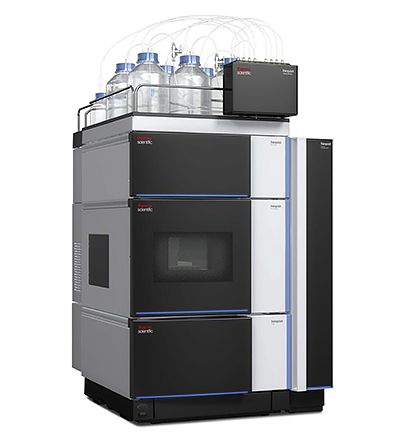

The Thermo Scientific Vanquish Horizon UHPLC system brings exceptional analytical precision, detector sensitivity, and operational simplicity to enable unmatched robustness and performance
The Thermo Scientific Vanquish Horizon UHPLC system provides unrivaled performance and throughput for applications requiring high-end UHPLC, ideal for research and development labs. With a fully biocompatible flowpath and ultra-low gradient delay volume, it offers superior separations with unsurpassed retention time and peak area precision, excellent detector sensitivity and lower baseline noise for the most demanding LC and LC-MS workflows. Like all members of our Vanquish product line, Vanquish Horizon UHPLC systems offer hardware precision, detector sensitivity, and simplicity of operation.
System specifications:
Category | Vanquish Horizon UHPLC System |
System pressure, maximum |
1500 bar
|
Flow range |
0 - 5 mL/min
|
Pump options (default gradient delay volume) |
Binary (35 µL)
|
Biocompatible |
Yes
|
pH range |
2 - 12, chloride concentration up to 1 mol/L
|
System design |
Modular
|
Touchscreen user interface display compatible (optional) |
No
|
Solvent monitoring system compatible (optional) |
Yes
|
Customizable gradient delay volume to simplify method transfer |
Yes, with metering device
|
SmartInject technology for maximum injection precision and improved column lifetime |
Yes
|
Injection volume range |
Standard: 0.01 - 25 µL Optional: 0.01 - 100 µL |
Sample cooling |
Yes, 4 - 40°C
|
Sample capacity (standard) Based on standard 12 mm OD vials (≤1.5 mL) |
4 racks of 54 vials (≤1.5 mL) each, other rack formats available + capacity of 12 × 22.5 mm OD vials (≤10 mL) in the carousel |
Sampler extension available |
Yes, with Vanquish Charger
|
Column compartment thermostatting |
Yes, 5 - 120 C Still air and forced air |
Column compartment pre-heater |
Active and passive
|
Column compartment post-column cooler |
Yes
|
Detector choices |
Vanquish Charged Aerosol Detector Vanquish Diode Array Detector Vanquish Fluorescence Detector Vanquish Multiple Wavelength Detector Vanquish Variable Wavelength Detector Mass Spectrometer |
