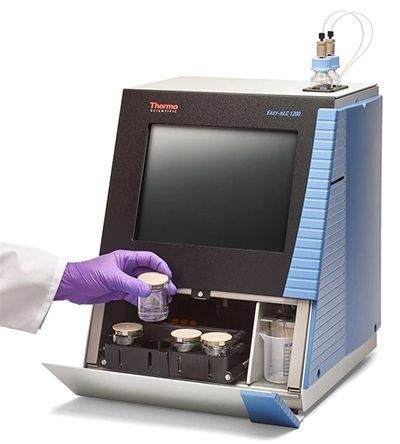

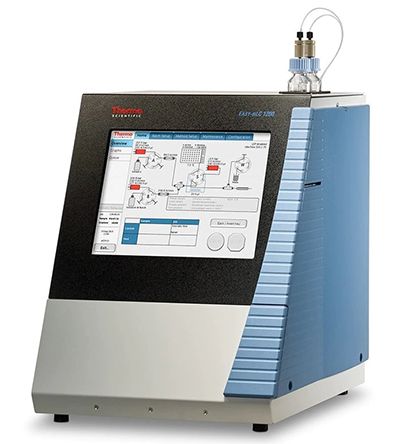

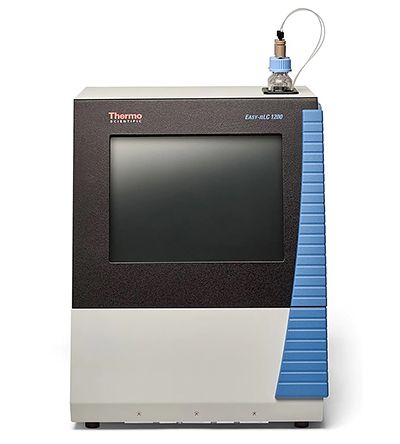

The Thermo Scientific EASY-nLC 1200 system provides effortless peak performance for nanoflow applications up to 1200 bar
The Thermo Scientific EASY-nLC 1200 system is an intuitive, fully integrated, ultra-high performance LC-MS solution for users at any level of expertise. Providing nano-flow UHPLC performance at an industry-leading 1200 bar, the EASY-nLC system offers reduced cycle times and increased throughput. Dual in-line flow sensors before solvent mixing give excellent gradient precision. Additionally, high pressure capabilities in the EASY-nLC system enable use of ultra-long columns, to maximize resolution of complex mixtures. Pumps, autosampler and control PC share one compact housing for powerful performance with a small footprint.
System specifications:
Category
|
EASY-nLC 1200 System
|
System pressure, maximum |
1200 bar
|
Flow range |
100 nL/min - 1.0 µL/min
|
Pump options (default gradient delay volume) |
Binary, integrated (<1 µL)
|
Biocompatable |
No
|
System design |
Integrated
|
Touchscreen user interface display compatible (optional) |
Yes, integrated
|
Active flow control |
Yes
|
Injection volume range |
Standard: 100 nL - 20 µL Optional: 100 nL - 50 µL |
Sample cooling |
Yes
|
Sample capacity (standard) Based on standard 12 mm OD vials (≤1.5 mL) |
48 vials
|
Sampler extension available |
Not applicable
|
Column compartment pre-heater |
Not applicable
|
Column compartment post-column cooler |
Not applicable
|
Detector choices |
Mass Spectrometer Variable Wavelength Detector |
