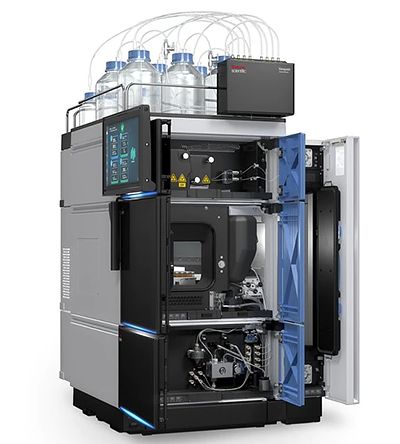

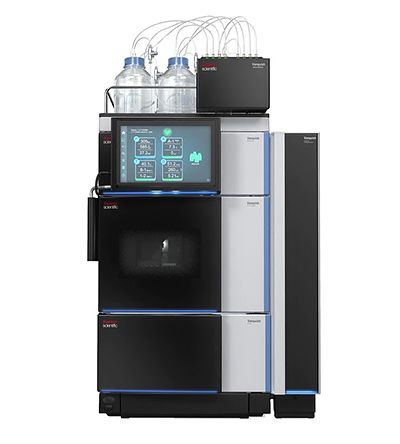

The Thermo Scientific Vanquish Core HPLC systems empower your operators to continually deliver exceptional results. Transferring methods to the Vanquish Core system is simple and seamless, regardless of your current HPLC setup
Eliminate disruptions to your routine analytical work with the Thermo Scientific Vanquish Core HPLC system. No matter which systems you currently use, switching to Vanquish Core is simple and seamless. A full suite of method transfer tools, including tunable gradient delay volume, makes adoption easy. Like all members of our Vanquish product line, Vanquish Core HPLC systems offer hardware precision, detector sensitivity, and simplicity of operation.
System specifications:
Category
|
Vanquish Core HPLC Systems
|
System pressure, maximum |
700 bar
|
Flow range |
0 - 10 mL/min
|
Pump options (default gradient delay volume) |
Binary (400 µL) Quaternary (679 µL) Isocratic Delay volume dependent on pump(s) selected |
Biocompatible |
No
|
pH range |
1 - 13, chloride concentration up to 0.1 mol/L
|
System design |
Modular
|
Touchscreen user interface display compatible (optional) |
Yes
|
Solvent monitoring system compatible (optional) |
Yes
|
Customizable gradient delay volume to simplify method transfer |
Yes, with method transfer kit
|
SmartInject technology for maximum injection precision and improved column lifetime |
Yes
|
Injection volume range |
Standard: 0.01 - 100 µL Optional: 0.01 - 1000 µL |
Sample cooling |
Yes, 4 - 40°C Dependent on sampler selected |
Sample capacity (standard) Based on standard 12 mm OD vials (≤1.5 mL) |
4 racks of 54 vials (≤1.5 mL) each, other rack formats available + capacity of 12 × 22.5 mm OD vials (≤10 mL) in the carousel |
Sampler extension available (optional) |
Yes, with Vanquish Charger
|
Column compartment thermostatting |
Yes, 5 - 85 C Still air and forced air |
Column compartment pre-heater |
Active (optional) Passive |
Column compartment post-column cooler |
No
|
Detector choices |
Vanquish Charged Aerosol Detector Vanquish Diode Array Detector Vanquish Fluorescence Detector Vanquish Multiple Wavelength Detector Vanquish Variable Wavelength Detector Refractive Index Detector Mass Spectrometer |
