REATORG PRESENTS A NEW PRODUCT ON THE RUSSIAN MARKET OF RECTIFICATION EQUIPMENT – EFFICIENT ROTATING DISTILLATION BAD AGT ERBD

Efficient Rotating distillation bads are a new type of distillation equipment used for the recovery of organic solvents, as well as for the separation and purification of products.

This technology, due to micromixing and rapid renewal of the phase interface, improves the gas-liquid mass transfer process and can significantly reduce the height and size of the installation.

Efficient Rotating distillation bad (ERDB) is an alternative distillation process to the classical method. The main unit of the ERDB is a specially designed rotor that rotates inside the housing. The vapor phase flow enters the rotor through its edges. The liquid phase in the rotor moves from the center to the edges due to centrifugal force. Thanks to the design of the rotor, a thin film of the liquid phase is created, with which the vapor phase interacts in countercurrent mode. In essence, the RERR installation is a compact distillation column with an adjustable number of theoretical plates (by controlling the rotor speed).

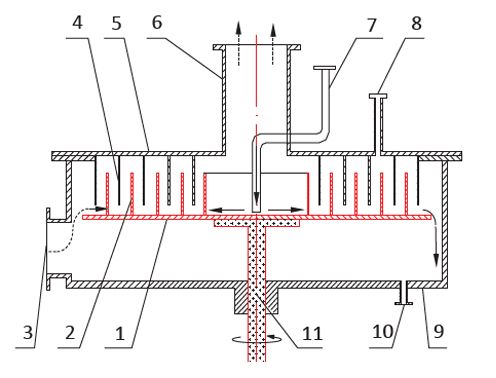

Diagram of the main unit of the ERDB installation:

1 - Rotating rotor; 2 - Rotor partition; 3 - Vapor phase inlet; 4 - Fixed partition; 5 - Fixed disk; 6 - Vapor phase output; 7 - Reflux supply; 8 - Supply of the mixture to be separated; 9 - Rotor housing; 10 - Liquid drainage; 11 – Rotor.

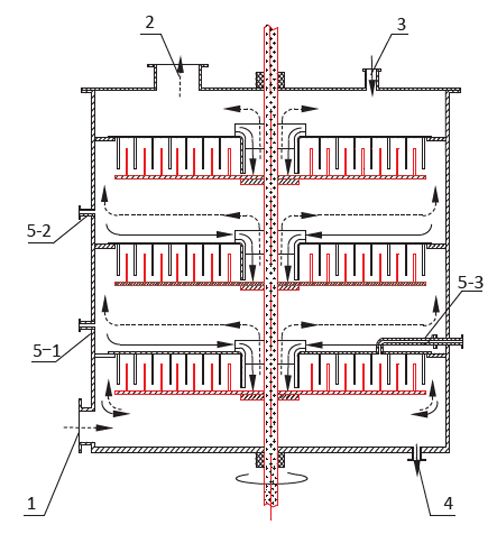

Flow diagram in the multi-level module of the ERDB installation:

1 - Vapor phase input; 2 - Vapor phase output; 3 - Return of phlegm; 4 - Liquid drainage; 5 - Supply of the mixture to be separated.

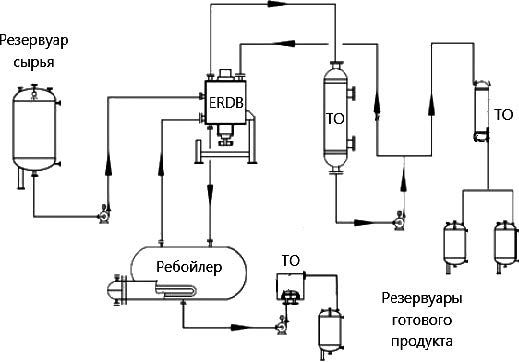

Technological diagram of the ERDB installation:

Currently, ERDB technology is gaining widespread use in the regeneration and purification of solvents such as methanol, ethanol, isopropanol, acetone, acetonitrile, tetrahydrofuran, dichloromethane, ethyl acetate, toluene and others, which are widely used in the chemical and pharmaceutical industries.

Since the operating principle of ERDB does not differ from classical rectification, it is possible to carry out azeotropic rectification processes in these installations.

The REATORG company presents ERDB installations on the Russian market from its reliable partner - the AGT company.

Advantages of ERDB installations from AGT:

1. High separating ability.

2. Small size and lower cost compared to classic distillation columns.

3. Due to the high separating ability, small size, block design and relatively low cost, the RERR installation can be located in close proximity to the technological process.

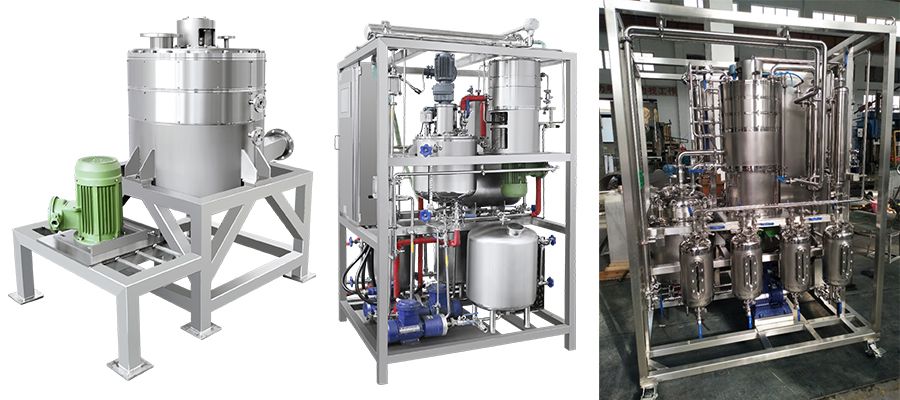

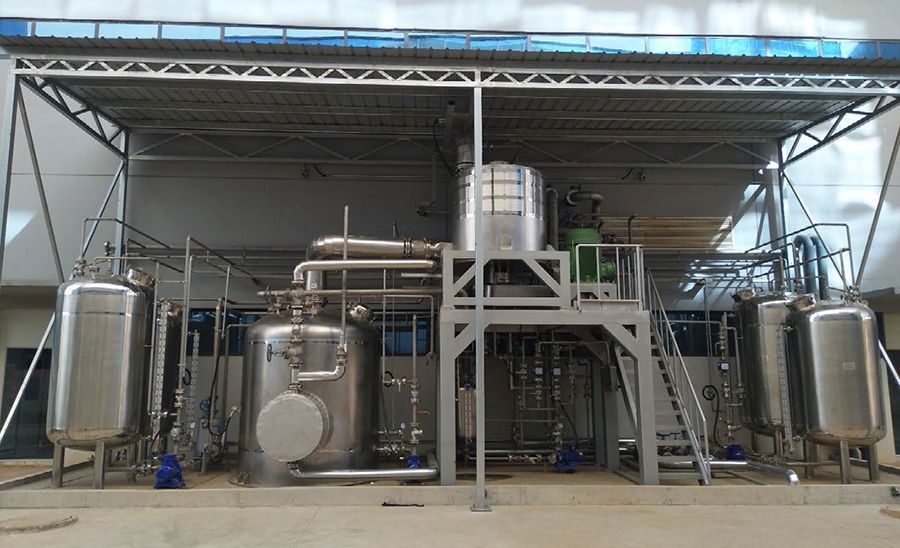

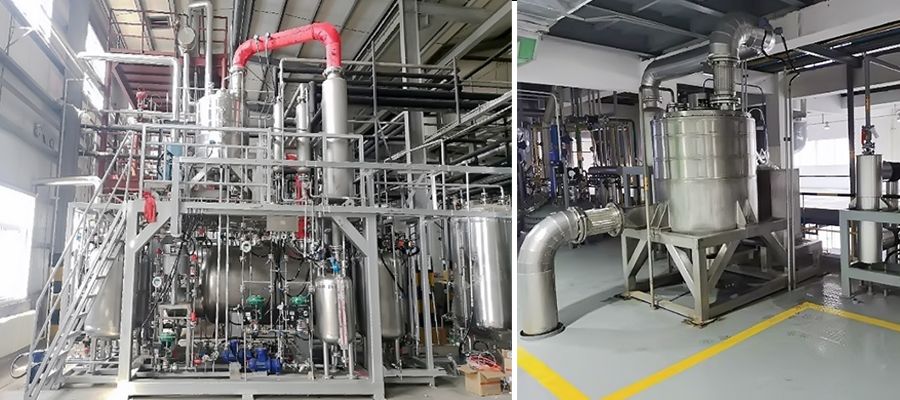

The range of supplied equipment includes both pilot (from 5-100 kg/h) and industrial installations (up to 3000 kg/h). AGT's ERDB units are manufactured as a unit on its own frame, which significantly reduces installation time on site.

For the production of anhydrous ethanol, isopropanol and acetonitrile, it is possible to manufacture and supply a ERDB installation complete with a first-poration module.

The REATORG company provides services for selecting a ERDB units, installation of the units (with preparation of working documentation and passing an industrial safety examination), commissioning, warranty and post-warranty service.

Almost all ERDB installations, in terms of the amount of flammable liquids in the process and the volume of the bottom tank (reboiler), fall into at least category 4 of a hazardous production facility (hazardous production facility). To comply with the requirements of Russian legislation, REATORG Company provides services for replacing measuring instruments, confirming the compliance of installation components with the requirements of TR TS 032 and TR TS 012.

When preparing working documentation, the explosion hazard category of the process unit is calculated. Depending on the received category of the unit, REATORG Company provides services for the development of a monitoring and control system for critical parameters or a full-fledged emergency protection system.

At our stand No. A2047 at the Pharmtech & Ingredients 2023 exhibition we will present a pilot plant for the Efficient Rotating distillation bad AGT ERDB DN300. We will be glad to see you among the guests of our exposition, where our specialists will be able to give comprehensive advice on the characteristics and efficiency of using new equipment.
